Description
3/4″ UNI-D Solenoid Valve for water and oil NC 12vdc in Pakistan
Solenoid valves are control units that, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.
Features 3/4″ UNI-D Solenoid Valve:
- Durable and practical.
- Made of high-quality plastic and metal, long life.
- Very convenient to use, open or close when power on or off.
Specifications 3/4″ UNI-D Solenoid Valve:
- Body Material: Brass
- Working fluid: air, water, oil
- Type: normally closed
- Take over pore diameter: 3/4 inch
- Operating Viscosity: Under 20CST
- Seal Material: NBR
- Voltage: 12VDC
- Pressure range : 0kg/cm2 – 10kg/cm2
- Fluid temperature : -5 – 100 ℃
Usage:
- Water and low viscosity fluids.
- Gases
Features Extra:
- Durable and practical.,
- Made of high quality plastic and metal, long life.,
- Very convenient to use, open or close when power on or off.,
Founded in 1971 in Taiwan, China, Northman is a professional designer and manufacturer of hydraulic components. Products of Northman include directional valves, superposition valves, pressure valves, flow valves, proportional valves, plug-in valves, hydraulic cylinders, vane pumps and gear pumps, etc.
Northman valves have various types to meet different users’ needs.
● Directional control valves
● Proportional directional valves
● Modular valves
● High pressure modular valves
● Fork lift directional control valves
● Relief valves
● safety valves
● Proportional electro-hydraulic control valves
● Flow control valves
3/4″ UNI-D Solenoid Valve for water and oil NC 12vdc
- UD series is direct-acting, conductive, and 2 way solenoid valve.
- Able to be operated directly without pressure.
- Availability of fluid type：water, air, light oil, gas, vacuum.
- Acceptable for customizeation：Viton (130℃) , Silicone (130℃) and EPDM (130℃).
- Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
- To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
- It should be installed horizontally；vertical installation is not advisable.
NORTHMAN solenoid operated directional valve has the series of SWH-G02, SWH-G03, SWHL-G02.
Northman directional valve line consists of SWH/SW series solenoid directional valves, HD series plate type manual directional valves, DC series mechanical directional valves, CI series pipe type sole-direction valves, CV series plate type right-angle valves, etc.
Northman pneumatic solenoid valve is driven by compressed air to control the flow of air, water, steam, mud, oil, liquid metal, corrosive media and radioactive media, etc.
Northman hydraulic control valve is an automatic device operated by oil of pressure. Controlled by the pressure oil of the distributing valve and usually combined in work with the electromagnetic distributing valve, Northman hydraulic valve can be used for remote control of oil, gas and water pipeline systems in hydropower stations.
As a direct Northman distributor for years, OKmarts has a ready inventory of various Northman control valve models for worldwide users.
On OKmarts mall, you can find the most competitive NORTHMAN solenoid valve price and get fast shipping across the US and the world. OKmarts is a good place for buying a NORTHMAN solenoid valve online. If you need a NORTHMAN solenoid valve catalogue, please contact our customer service staff.
3/4” UNI-D Type UW-20 2W200-20 Brass Solenoid Valve For Water Gas Oil
Power:Solenoid
Media:Water
Port Size:3/4”
Structure:Diaphragm
Function:2/2 Way Normally Closed
Operation Type:Direct Acting, Semi-Direct Operated
Valve Body Material:Brass, Stainless Steel 304
Diaphragm Material:NBR, FKM and EPDM
Pressure Range:0 to 1.0 Mpa
Temperature Range:-5 to +100 ℃
Voltages:24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC

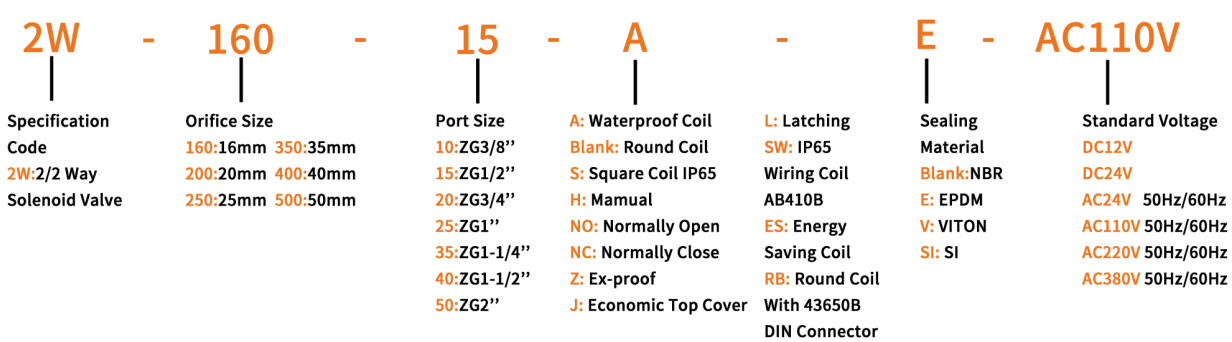

2W Series Model No:2W025-08, 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2W500-50
UD Series Model No:UD-6, UD-8, UD-10
UW Series Model No:UW-10, UW-15, UW-20, UW-25, UW-35, UW-40, UW-50
Dimension of 2W/2S Water Solenoid Valve :
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
G1/8”
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
G1/4”
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
G3/8”
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
G3/8”
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
G1/2”
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
G3/4”
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
G1”
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
G1-1/4”
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
G1-1/2”
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
G2”
|
Technical Data:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15 |
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25 |
35
|
40
|
50
|
|
Port Size
|
1/4”
|
3/8”
|
1/2”
|
3/4”
|
1”
|
1-1/4”
|
1-1/2”
|
2”
|
|
Medium
|
Water, Air, Oil, Gas, Steam
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +100℃
|
|||||||
Product Features:
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve;
2. Able to be operated directly under low pressure;
3. Availability of fluid type:water, air, light oil;
4. Diaphragm accept for customization NBR, Viton, Silicone and EPDM.
Brando Factory Production of Brass Solenoid Valves:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
