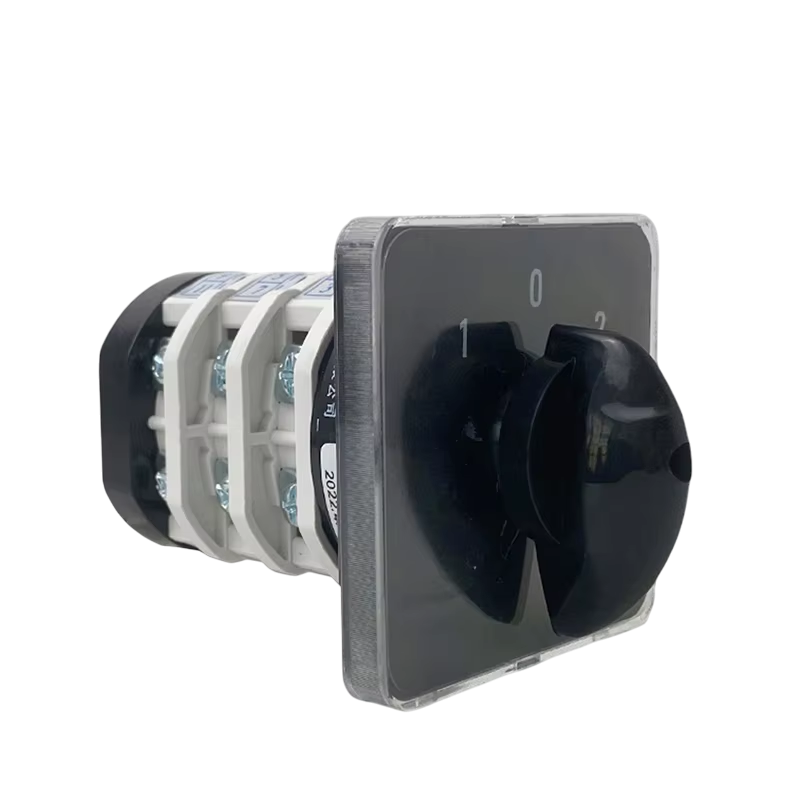

Rotary Changeover Switch 32A 3 Position 3 Phase ypt1 14050
₨ 0.0
Need some help?
Contact Us
Product Ships in
2-3-business Days
Rotary Changeover Switch 32A 3 Position 3 Phase
Basic Info.
- Model NO.
- LW26
- Standard
- Standard
- Structure
- Mushroom-Head
- Operation
- Open Type
- Certification
- CE
- Condition
- New
- Pole
- 1p 2p 3p 4p 7p 10p
- Rated Thermal Current
- 20A 25A 30A 40A 50A 63A 80A
- Universal Changeover Cam Rotary Switch
- Rated Insulation Voltage
- 660/690V
- Product Name
- Universal Changeover Cam Rotary Switch
- Mounting Type
- Face Plate Mounting
- External Size
- Contact
- OEM/ODM
- Ok
- Color
- Blue
- Transport Package
- 20PCS/Carton
- Specification
- carton size: 44cm*32cm*31cm
- Trademark
- GENTAI
- Origin
- China
- HS Code
- 8538909090
- Production Capacity
- 300000PCS Per Year
Product Description
1.Products Introduction
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits. For breaking and closing,change-over of circuits under unfrequenly manual operation. And the typical application are:control switch of 3 phase motors,control switch gear, control switch of instruments,and change-over switch of machinery and welding machine. The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1. The LW26 series have 10 current ratings:10A,20A,25A,32A,40A,63A,125A,160A,250A and 315A.
They were designed for multiple functions ,wide variety of applications. The LW26-10,LW26-20,LW26-25,LW26-32F,LW26-40F and LW-60F have finger protection terminals. LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12. The LW26 series rotary switch has two derivatives,LW26GS Pad-lock type and LW26S Key-lock type.
Both of them are applicable in circuits when an physical control is required. We can equip protective box(IP65) for 20A to 250A.
2.Working Conditions
- a.Ambient temperature DO NOT exceed 40ºC, and the average temperature,measured over a period of 24 hours,
- DO NOT exceed 35ºC.
- b.Ambient temperature should not be below -25ºC.
- c.Should not be isstalled above 2000m above sea level.
- d.The humidity should not exceed 50% when the ambient temperature is 40ºC and higher humidity is allowed for lower temperature.
