Description

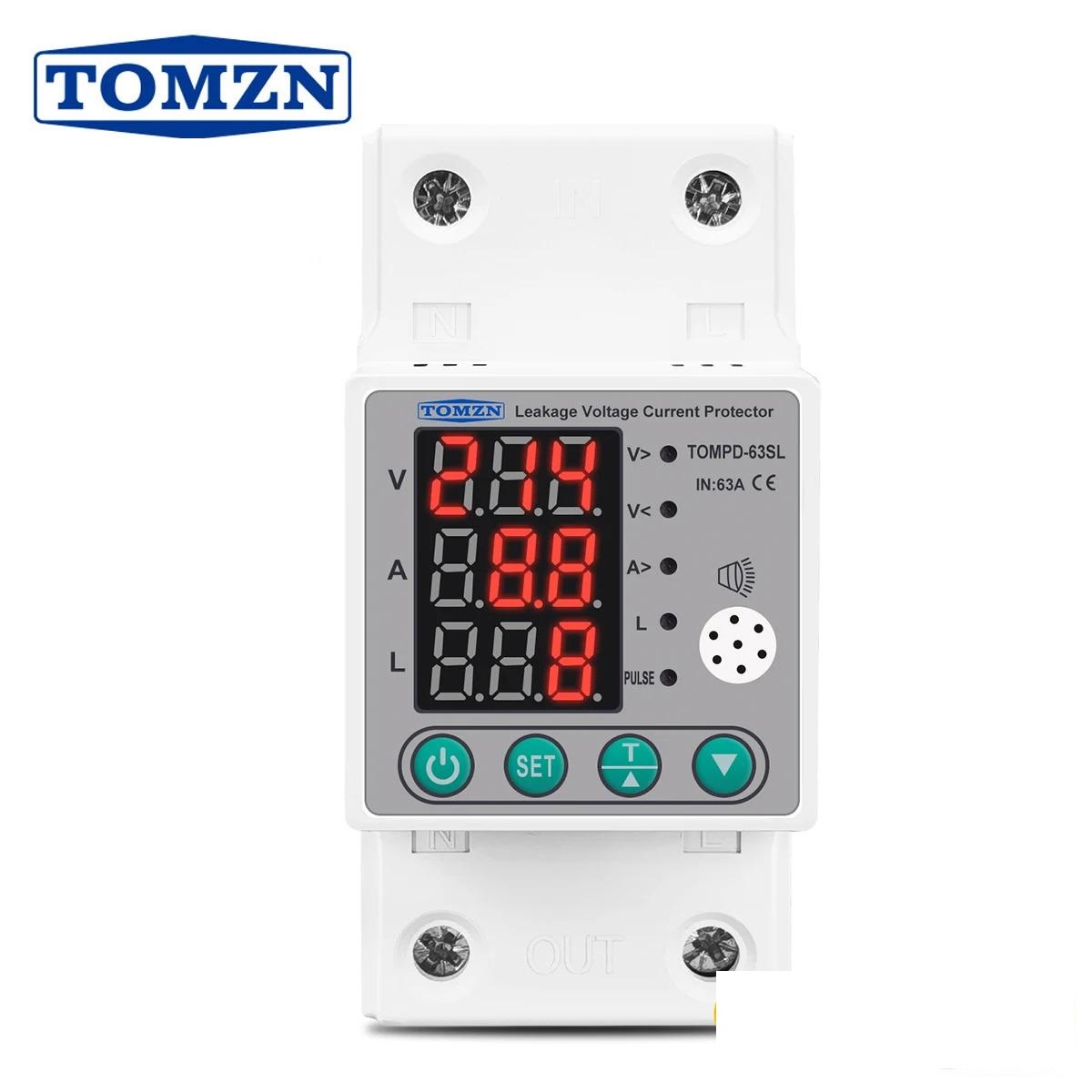

TOMZN 63A Leakage Current Protection

Features: TOMZN 63A Leakage Current Protection Surge Protector

  • Comprehensive protection: Provides protection against leakage current, surges, over-voltage, and under-voltage
  • Leakage range: 10~99mA(adjustable)(Default 30mA) Leakage response time: ≤0.1S
  • Over voltage range: AC250~300V(adjustable)(Default 270V) Overvoltage response time: ≤0.1S
  • Low voltage range: AC150~190V(adjustable)(Default 170V) Low voltage response time: ≤0.1S
  • Over current range: 1~63A (adjustable) (Default 40A) Overcurrent range response time: ≤0.1S
  • Short-circuit current: ≥31ln Short-circuit response time: ≤0.1S
  • Automatic reconnect: Automatically reconnects power after over-voltage or under-voltage events
  • Power monitoring: Monitors real-time power consumption and records historical data
  • Din rail mountable: Easily mounts on a standard 35mm Din rail
  • 63A rated current: Suitable for installations with high power demands
TOMZN 63A Leakage Current Protection

TOMZN 63A Leakage Current Protection

Specification TOMZN 63A Leakage Current Protection Surge Protector:

  • Rated voltage: 220V AC
  • Rated current: 63A
  • Leakage current protection: 30mA, 100mA, 300mA (selectable)
  • Surge protection: 10kV
  • Over voltage protection: 270V AC
  • Under voltage protection: 170V AC
  • Power monitoring: Real-time power consumption, historical data recording
  • Dimensions: 72 x 36 x 90mm
  • TOMZN Residual Current Circuit Breaker Main Switch with Surge Protector RCBO MCB with Lightning-Protection SPD
  • Weight: 200g

Dimensions:

  • Length: 72mm
  • Width: 36mm
  • Height: 90mm

Uses:

  • Protecting sensitive electronics and appliances from leakage current, surges, over-voltage, and under-voltage
  • Monitoring power consumption in homes, businesses, and industrial facilities
  • Preventing electrical hazards and ensuring the safety of electrical installations

Hallroad.org.pk  is the Online Shopping website for TOMZN 63A Leakage Current Protection Surge Protector. Here you get TOMZN 63A Leakage Current Protection Surge Protector at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

  • TOMZN Leakage Current Protection Surge Protector Relay Power kwh Din Rail 63A Automatic Reconnect Over Voltage and Under Voltage
  • User manual

1. Overload Protection
2. Leakage Protection
3. Short Circuit Protection
4. Lightning-Protection
Rated Voltage: 230V
Rated Current: 63A / 25A
Poles: 2P+PE
Segmentation Capacity: 6kA
Rated Residual Operating Current: 30mA
Action Time: ≤0.1S
Type: Residual current circuit breaker
Model Number:TOB1L-63HD
color:White
Material:plastic

Package Contents:
1 x Leakage Protector(63A)
/
1 x Leakage Protector(25A)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
