Description

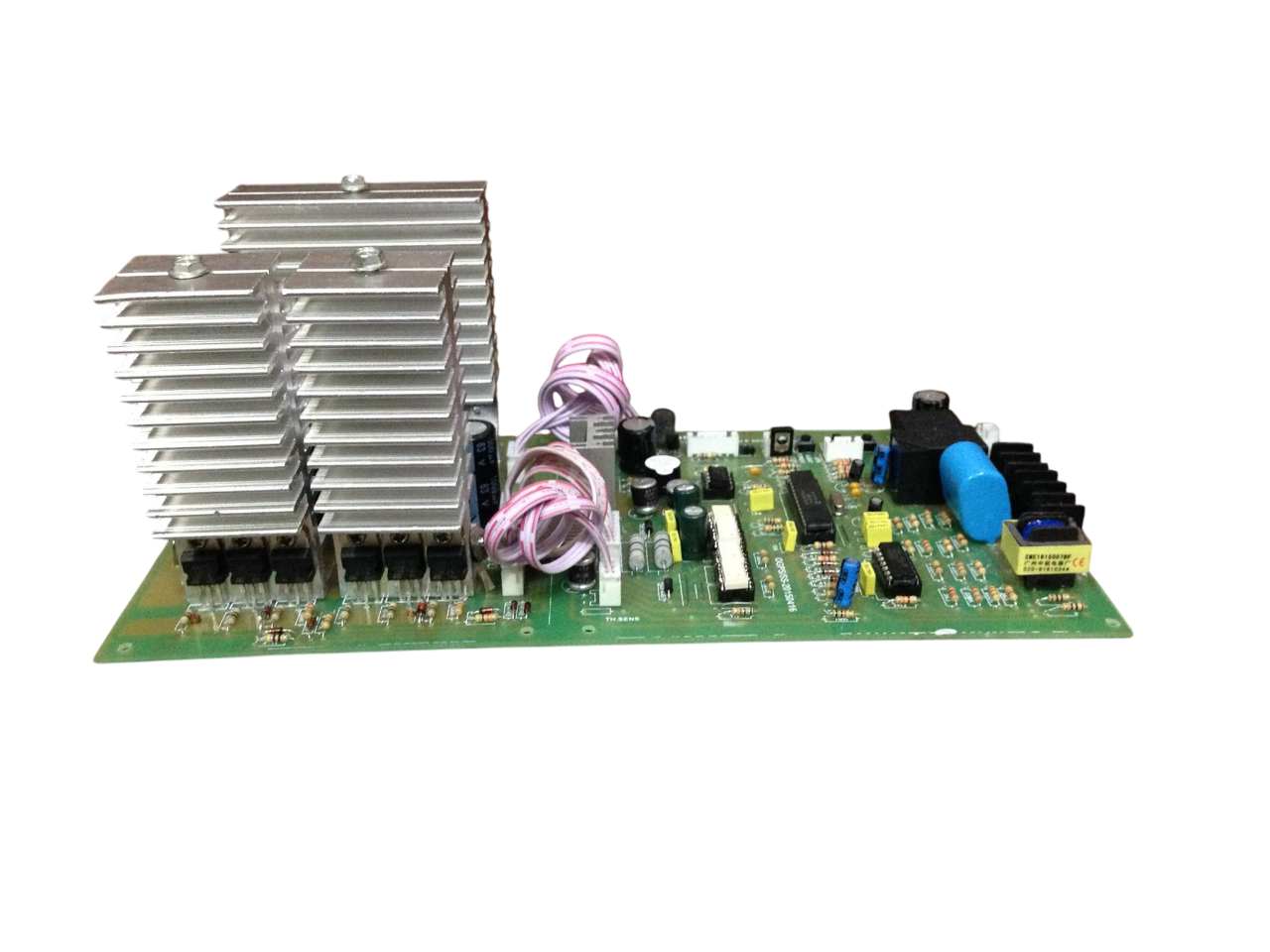

UPS Module Circuit 10+10, 4+4, 6+6 in Lahore

This power inverter is designed for 12v DC but also can be connected to 24v DC, my goal is 800 watt, strive to 1000 watt pure sine wave output. The inverter overall structure is, the downside is a large cooling plate, the upside is a power board with the same size as the cooling plate, length 228mm, width 140mm. 4 power tubes of voltage boost portion, 4 power tubes of H-bridge and 4 TO220 packed fast diodes are screwed on the cooling plate directly; DC-DC voltage boost circuit driver board and SPWM driver board are plugged on the power motherboard.

UPS Module Circuit in Pakistan-hallroad.org.pk

UPS Module Circuit in Pakistan-hallroad.org.pk

UPS Power Module 4+4 MOSFET And 6+6 And 10+10 MOSFET.

  • 2015 Models.
  • Regular Series
  • Dx1700 12V/24V (LED Display)
  • Dx1700i 12V/24V (LCD/LED Display)
  • BiG Series.
  • Dx1700i-BiG 12V/24V/48V (LCD/LED Display)



Simple & high efficiency module price in Pakistran

  • UPS Module Circuit 10+10Mosfet 75NF75 (PullOut)Excellent Quality Products
  • UPS Module Circuit 10+10
  • Mosfet 75NF75 (PullOut)
  • Excellent Quality Products

Specifications of UPS Module Circuit

  • UPS Module Circuit 4+4,
  • UPS Module Circuit 9+9,
  • UPS Module Circuit 6+6,
  • UPS Module Circuit 10+10,
  • UPS Module Circuit 7+7,
  • 1000W UPS Kit Module 75NF75 (6+6)
