Digital Free Fall Apparatus Pakistan | Hallroad.org.pk

5,500

Digital Free Fall Apparatus Gujranwala | Hallroad.org.pk

  • Height scale 20 – 960 mm
  • Scale divisions: 10 mm
  • Scale precision: 0.2 mm
  • Balls: Steel, 16 mm dia.
  • Dimensions: 200 x 130 x 1000 mm³ approx.
  • Weight: 1.6 kg approx.

Description

Digital Free Fall Apparatus Lahore | Hallroad.org.pk

Features:

  • Digital timer and counter with photogates
  • Reliable structure and stable performance
  • High accuracy (error<2%)
  • free fall using an electronic timer
  • Free Fall Manual Apparatus Physics Lab Equipment Matric science
  • Free fall Apparatus w Digital Counter.
  • Specifications Digital FreeFall Apparatus

Introduction:

Free Fall Apparatus is an essential tool for teaching mechanics. The regular motion of a free fall object can be observed qualitatively and measured quantitatively using this instrument.

Specifications:

Digital Free Fall Apparatus Lahore | Hallroad.org.pk

Digital Free Fall Apparatus Lahore | Hallroad.org.pk

Description Specifications
Height 1.2 m
Electromagnet power DC 6 V
Digital timer & counter 4 digits, timing range: 0 ~ 999.9 s; counting range: 0 ~ 9999
Steel ball Diameter: 18 mm
Relative experimental error ≤ 2%

Part List

Description Qty
Main unit incl 3 vertical adjusting bolts, 8 sets of fixing screws and nuts
Steel ball 2
Rack 1
Wire and plug 1
Plumb line weight 1

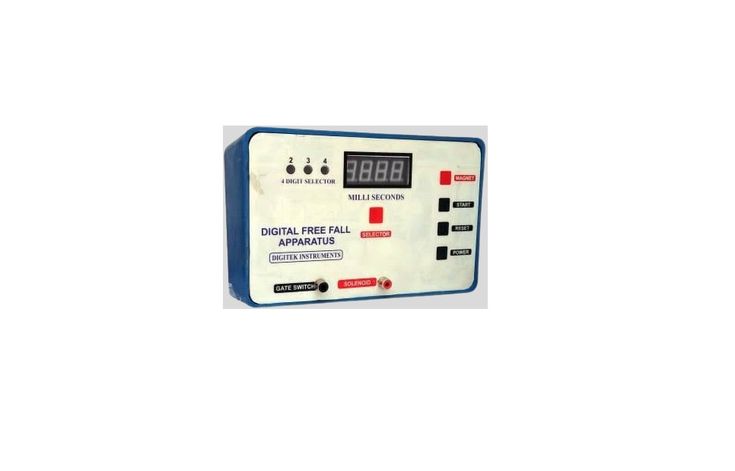

Digital timer 1
Manual 1

LEMI-46 Complete Free Falling Body Apparatus.png

This apparatus is designed for help the student in understanding the free fall, viz.: a falling steel ball time measurement, inspecting the relationship between the altitude and the time taken, and measuring the gravity “g” acceleration. Timer Counter AT-01 usage makes it possible to measure the free fall time accurately up to 100 micro second graduation. Free fall time is measured using two Photo Gates. When the ball is released, Timer counter is automatically start counting the time. The Timer Counter will read the time taken by the ball from the magnetic holder through each of Photo Gates. When the ball has passed the second photo gate then the Timer Counter automatically stop measuring and immediately shows the measurement result.

Free fall Apparatus w Digital Counter.
