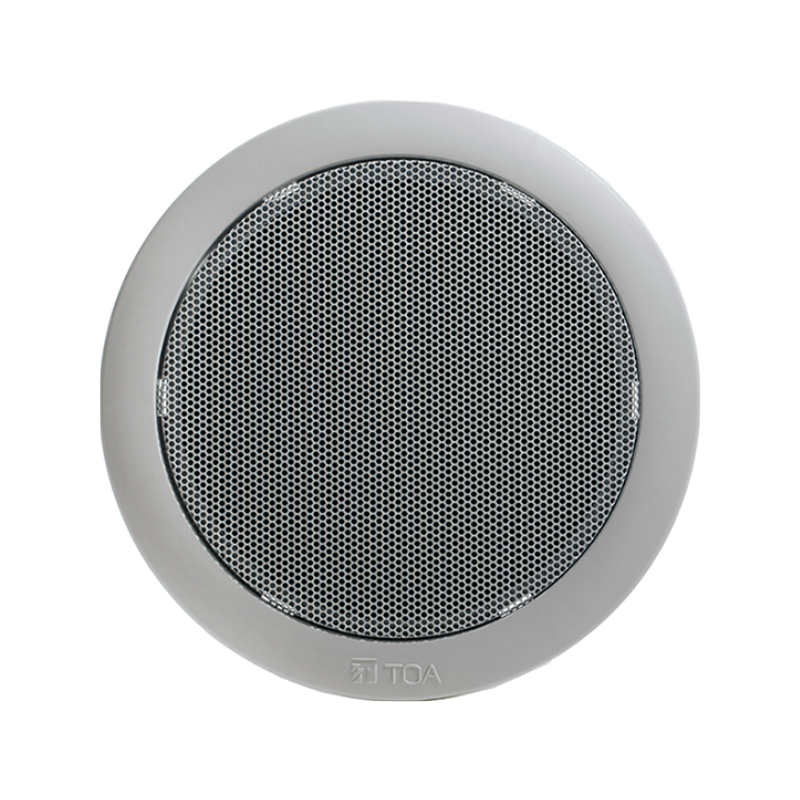

Features TOA PC-658R Ceiling Speaker
|
Rated input
|
6 W (100 V line), 3 W (70 V line)
|
|
Rated impedance
|
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
|
Sensitivity
|
90 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
|
|
Frequency response
|
65 Hz – 18 kHz (peak -20 dB)
|
|
Speaker component
|
16 cm (6″) cone-type
|
|
Dimensions of fixing hole
|
Mounting hole: φ170±5 mm (φ6.69″±0.2″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″) |
|
Dimensions
|
φ192 × 73 (D) mm (φ7.56″ × 2.87″)
|
|
Finish
|
Baffle: Polypropylene resin, white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
|
Speaker Mounting Method
|
Spring clamp
|
|
Weight
|
500 g (1.1 lb)
|
|
Accessory
|
Paper pattern …1
|
