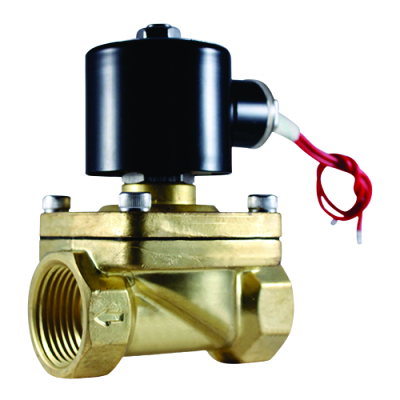

UNI-D Solenoid Valve for GAS and STEAM

11,000

Need some help?

Contact Us

Product Ships in

2-3-business Days

Solenoid Valve for GAS and STEAM in Gujranwala

UNI-D Solenoid Valve for GAS and STEAM in Lahore Pakistan

Model: UW-50
Made: UNI-D
Working medium : air,water,oil,gas
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Aperture of Flow Rate : 20mm.
Joint Pipe Bore : 2″
Operation Fluid Viscosity : below 20 CST
Working Pressure : Water/Oil :0~5 kgf/cm2 , Air /Gas:0~7 kgf/cm2
Max.Pressure Resistance : 10.5 kgf/cm2
Operating Temperature Range : -5~100℃
Voltage: AC220V
Voltage Range : 10%
Material of Body : Brass
Material of Oil Seal : NBR , EPDM , VITON

UNI-D Solenoid in Pakistan Valve 1″ UW-25

  • Able to be operated directly without pressure.
  • Availability of fluid type:water, air, light oil, gas, vacuum.
  • Acceptable for customizeation:Viton (130℃) , Silicone (130℃) and EPDM (130℃).
  • Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
  • UNI-D Solenoid Valve for GAS and STEAM (-5?C to 185?C)
  • To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
  • It should be installed horizontally;vertical installation is not advisable.
  • Able to be operated directly without pressure.
  • Availability of fluid type:water, air, light oil, gas, vacuum.
  • Acceptable for customizeation:Viton (130℃) , Silicone (130℃) and EPDM (130℃).
  • Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
  • 1/2'' Uni-d Steam Solenoid Valve Ptfe Us
  • US-15 Uni-D Type Steam Solenoid Valve 1/2'' 220V
  • uni-d factory wholesale solenoid valve us-25
  • Solenoid Valves - miT-UniD®-cns
  • Solenoid Valve UNI-D
  • Solenoid Valve-Normally Closed Type - PRO UNI-D CO
  • To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
  • It should be installed horizontally;vertical installation is not advisable.
