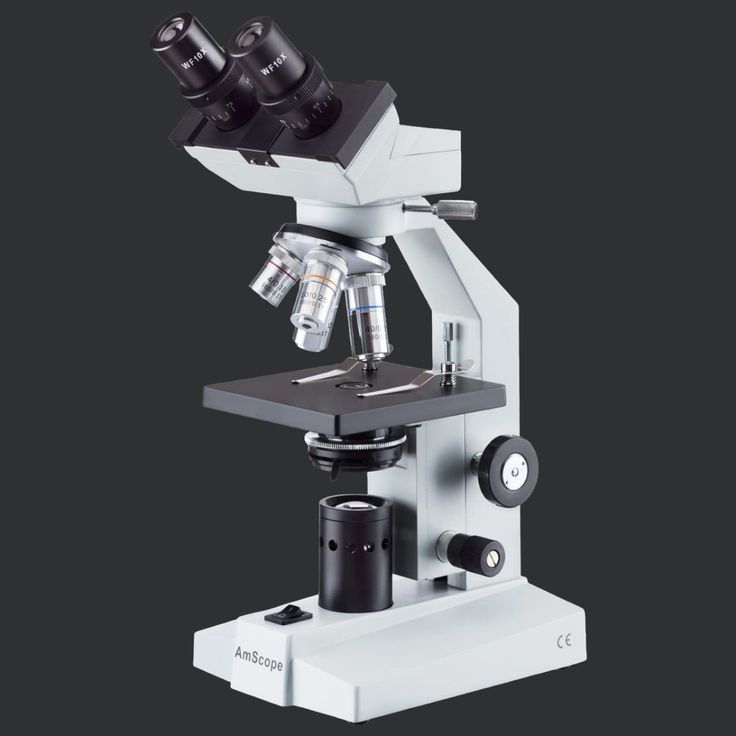

BINOCULAR MICROSCOPE – XSZ-107BN
Compound Biological Microscope Model: XSZ-107BN, Can Be Widely Used In Medical And Sanitary Establishments, Laboratories, Institutes, Network Of Agricultural Research, Colleges And Universities For Clinical Microscope Inspections And Used As Instructional Equipment. They Also Can Be Used In Research Work Such As Biology, Bacteriology, Cytology, Histology And Pharmaceutical Chemistry.
SPECIFICATIONS:
|
Product Name |
Biological Binocular Microscope |
|
Model |
XSZ-107BN |
|
Total Magnification |
40X~1600X |
|
Eyepieces |
WF10X(2PCS), WF16X(2PCS) |
|
Objectives |
4X, 10X,40XS, 100XS |
|
Eyepieces Tube |
Binocular 45º. Inclined Tube Rotatable 360º . |
|
illumination |
6V/20W Halogen Lamp |
|
Coarse Adjustment Range |
30mm |
|
Fine Adjustment Range |
30mm |
|
Working Stage |
Double Layer Mechanical Stage:130×140mm – Moving Range 75mm×45mm |
|
Condenser |
NA1,25 Abee Condenser With Changeable Diaphragm, Moving Scale And Fil |
XSZ-107 Series Biological microscope has the stable frame and can fit monocular, binocular, trinocular head on it. Double layer mechanical stage with adjustable long handle and coaxial coarse /fine focus knob make the operation easily. It is provided with high-quality achromatic objectives, wide field eyepieces and halogen lamp adjustable brightness, which guarantee the best image. Also, you can equip with phase device. It’s both excellent in performance and moderate price. It is used widely for clinical examination, teaching demonstration & cystoscopy in colleges and universities, medical and health establishments, research institutes and department for forestry and agriculture.
Structure:
XSZ-107 Series of the microscope is composed by nine main component parts:
1. Stand: It’s the base bearing the total weight of microscope, which builds in the illumination system, electronic parts, and connecting control.
2. Arm: It’s the central part connecting the flame and every main component parts. It’s provided with coaxial coarse/fine focus system, with tension adjustable knob and limited stopper.
3. Rise and fall support: It connects with stage, arm, and condenser. Stage and condenser can move smoothly through it.
4. Eyepiece head: It can adjust interpupillary distance and visibility, and 45 inclined(Sliding style) or 30 inclined (Compensation free), in order to observe comfortably and conveniently, Binocular head, trinocular head & monocular head are optional.
5. Eyepiece: Using WF10X and WF16X (for choice) wide field eyepiece.
6. Nosepiece: It guarantees smooth rotation by quadruple revolving nosepiece.
7. Objective: 4X, 10X, 40X(S) and 100X(S, Oil) high-quality achromatic objectives make the imaging clearly.
8. Stage: Using double layer mechanical stage, it can be operated much easily by a coaxial knob in low position.
9. Condenser: ABBE condenser N.A.=1.25 with iris diaphragm, Kohler illumination is optional.
XSZ-107BN Series Biological Microscope Discerption
XSZ-107 Series Biological microscope has the stable frame and can fit monocular, binocular, trinocular head on it. Double layer mechanical stage with adjustable long handle and coaxial coarse /fine focus knob make the operation easily.
Structure:
XSZ-107 Series of the microscope is composed by nine main component parts:
1. Stand: It’s the base bearing the total weight of microscope, which builds in the illumination system, electronic parts, and connecting control.
2. Arm: It’s the central part connecting the flame and every main component parts. It’s provided with coaxial coarse/fine focus system, with tension adjustable knob and limited stopper.
3. Rise and fall support: It connects with stage, arm, and condenser. Stage and condenser can move smoothly through it.
4. Eyepiece head: It can adjust interpapillary distance and visibility, and 45 inclined(Sliding style) or 30 inclined (Compensation free), in order to observe comfortably and conveniently, Binocular head, trinocular head & monocular head are optional.
5. Eyepiece: Using WF10X and WF16X (for choice) wide field eyepiece.
6. Nosepiece: It guarantees smooth rotation by quadruple revolving nosepiece.
7. Objective: 4X, 10X, 40X(S) and 100X(S, Oil) high-quality achromatic objectives make the imaging clearly.
8. Stage: Using double layer mechanical stage, it can be operated much easily by a coaxial knob in low position.
9. Condenser: ABBE condenser N.A.=1.25 with iris diaphragm, Kohler illumination is optional.
